QINGDAO GUOSONG MACHINERY PARTS CO.LTD Brake hose and Fittings factory,Quality is the first,Service is important
10 Years
| Ask Lasest Price | |
| Brand Name : | QDGY |
| Model Number : | GSG111 |
| Certification : | TS16949,ISO9001,SAE J1401,FMVSS106 |
| Price : | NEGOTIABLE |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 9000,000 meters per month |
| Delivery Time : | within 15days |
f
---Product Descrption---
Stainless steel braided brake hose Specifications:
| QDGY Part NO. | Inner Diameter | Outer Diameter | Outer layer | Stainless steel braid | Inner layer |
| GSG020 | 1/8"(3.2mm) | 0.413"(10.5mm) | PVC | 304 stainless steel | /PDFE |
| GSG026 | 3/16"(4.8mm) | 0.492"(12.5mm) | |||
| GSG028 | 1/8"(3.2mm) | 0.255"(6.5mm) | no covering | ||
| GSG024 | 3/16"(4.8mm) | 0.3"(7.6mm) |
Stainless steel braided brake hose Features:
Avaliable PVC /TPU color covering :
Application:
For use in braking system of the vehicle.
These Hoses are lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
Production under ISO 9001:2008 and CE control. High quality product and customer's
satisfaction is our pursuit. Good faith cooperation. Bright future.
A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi.

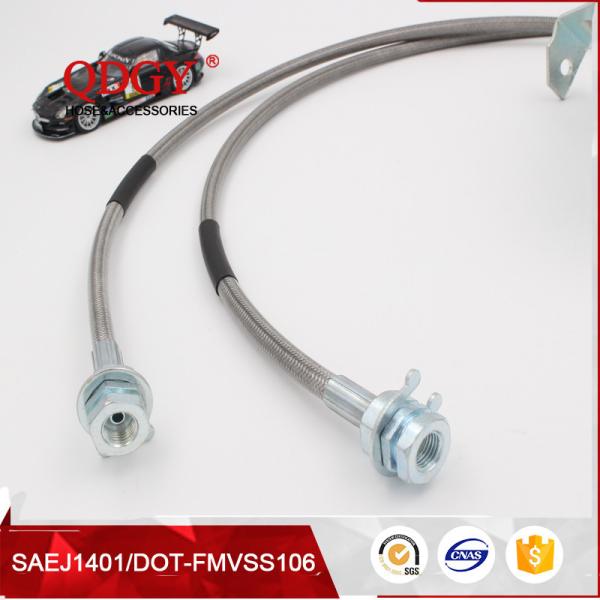

BRAKE HOSE IMAGE:
PACKING AND SHIPPING:
QDGY common package: PVC bag in carton box with QDGY logo
Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package.
Lead time: www.qdgybrakehose.com
For fitting: common fitting within 30 days;special fitting within 40 days.
For brake hose: wihithin 20 days.
For brake hose assembly: within 40 days.
Please noted: Exact lead time is based on details order ,please contact with us for the details information.
Shipping: www.qdgybrakehose.com
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
Advance Workshop
Why chose us?
| We are a member of Trade Assurance service in http://alibaba.com. that is new service provided by alibaba,which can provides buyers with a number of trade safeguards protect buyers' payment to suppliers, and to ensure suppliers fulfill their obligations regarding order and delivery time and product quality. |
| √ | Famous trademark of China |
| √ | Passed TS16949,ISO9001,DOT... |
| √ | National enterprise abiding by contract and keeping good faith |
| √ | National key high-tech enterprise |
| √ | Top ten influential brand of China brake hose and fittings industry |
| √ | First place in production and sales of brake hose and fittings in China |
| √ | ISO quality system certificate enterprise |
| √ | Professional sales teams ,technical engineers and pratical workers,safety |
| What can I do for you? | |
| 1. | Delivery time:30days after your deposit, which also will be on basis of your order. |
| 2. | Warranty:12 months. |
| 3. | Payment: 30% in advance by T/T 70% before shipment,other payments can be acceptable by negotiation. |
| 4. | Designing factory,technical support project. |
| 5. | Before sale service,middle sale service ,after-service will be supported |
| 6. | Related hose ,tube ,end terminal fittings,accessories and so on for sale. |
| 7. | All necessarry documents . |
Testing Equipment & Test report:
Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.
Test Items | Test Condition | Standard | Test Results |
ID | Normal | 3.2mm | 3.15~3.45mm |
OD | Normal | 10.5mm | 10.30~10.70mm |
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft | |
2900psi | 0.61cc/ft max. | 0.41~0.43cc/ft | |
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
Whip | 235~250psi | >35h | >70h |
Tensile | tensile speed:218±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated
25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
----FAQ---
Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose, brake hose, s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose, braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.
|
|
